T200A

Description

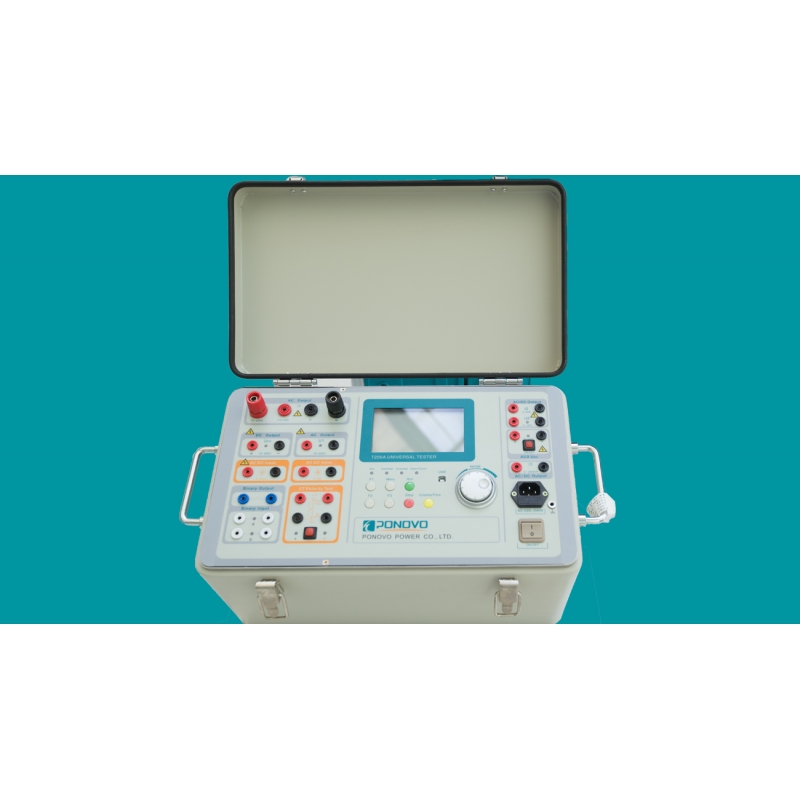

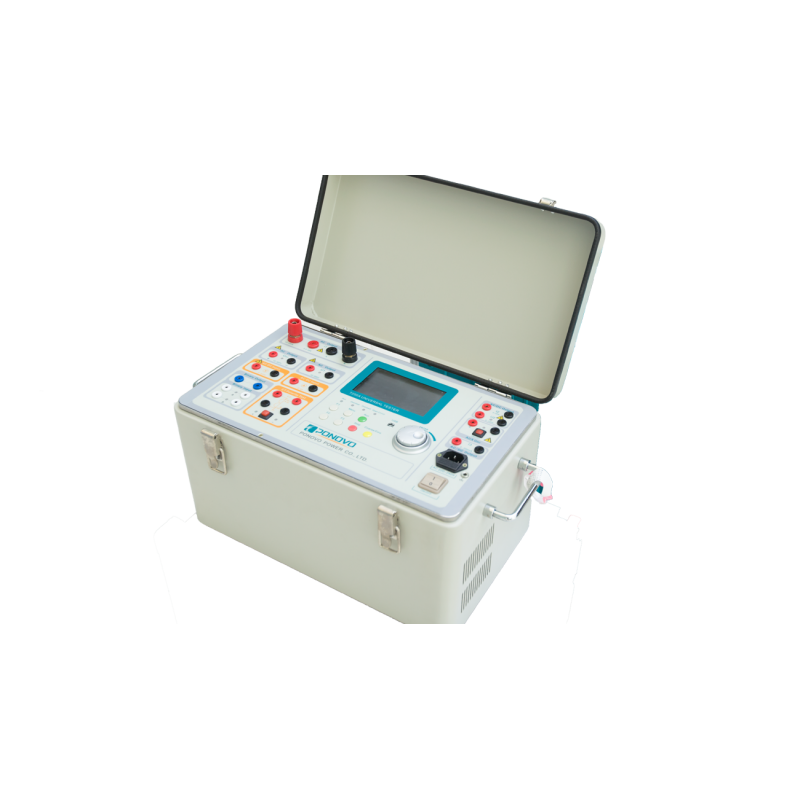

T200A is a secondary injection test set based on PWM technology. The secondary injection test set has numerous powerful features.

Features:

·       High power current source for high burden relay test.

·       Capable of testing differential relay with two independent current sources.

·       Capable of testing directional relay with adjustable phase angle.

·       In-built Ammeter and Voltmeter.

·       120s output time at 250A.

·       Rotating mouse control and quick control buttons.

·       Large LCD display.

·       Many ready test modules for automatic test applications.

Main Specifications

AC Voltage (U1)

10-500V

Power

1200VA at 400V

DC Voltage (UDC)

10-300V

Power

750VA at 300V

AC/DC Voltage (U2)



Range

0-120V

Power

60VA at 120V

Accuracy

0.5%

Transient response time

500µs

Frequency range

20-100Hz

Phase angle

0-360o

AC Current (I1)

250A

Power (±5%)

2000VA at 250A

AC/DC Current (I2)



Range

0-20A

Power

200VA at 20A

Accuracy

0.5%

Transient response time

500µs

Frequency range

20-100Hz

Phase angle

0-360o

AC/DC Current (I3)



Range

0-200mA

Accuracy

0.5%

Auxiliary DC supply

20-240V

Power

55W at 110V, 110W at 220V

Voltmeter

0-600V AC/DC

Accuracy

±1%

Ammeter

0-6A AC/DC

Accuracy

±1%

Binary input

2

Binary output

1

Dimension

440*255*255mm

Weight

20kg
