S40A

Description

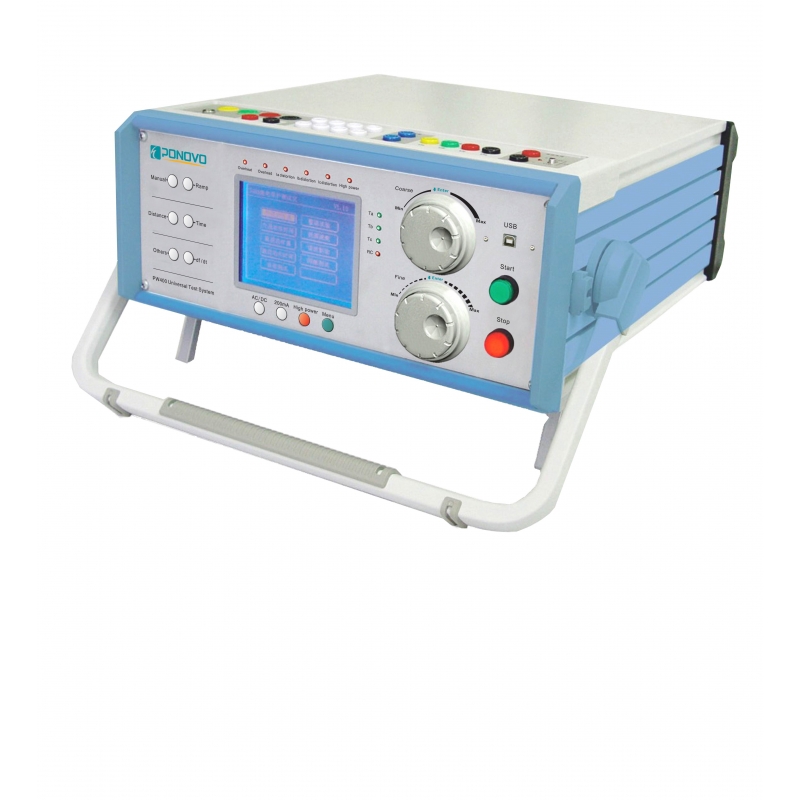

This relay test equipment is designed with 3 currents (3*40A) and 3 voltages (3*300V). The relay test system is easy to use and quick in process with the help of local control and ready test modules.

Features:

·       3*40A, 3*300V.

·       Additional 200mA AC current source.

·       Aux DC (24V, 110V, 220V).

·       4 binary inputs, 1 binary output.

·       Locally with coloured LCD.

Main Specifications

Current



Range

3 x 0-40A

Power(typical)

3 x 520VA at 30A

Accuracy (typical)

0.08% reading + 0.02% range

Voltage



Range

3 x 0-300 V

Power (typical)

3 x 95VA at 300V

Accuracy (typical)

0.08% reading + 0.01% range

Frequency



Sine signal

40-100Hz

Accuracy

0.002%

Phase angle



Range

0 – 359.9o

Accuracy (typical)

0.2o

Auxiliary DC supply

0V, 24V, 110V, 220V

Binary input



Number

4

Type

Potential free

Binary output

1

Type

Potential free relay contacts

Dimension

360*157*367mm

Weight

18kg
