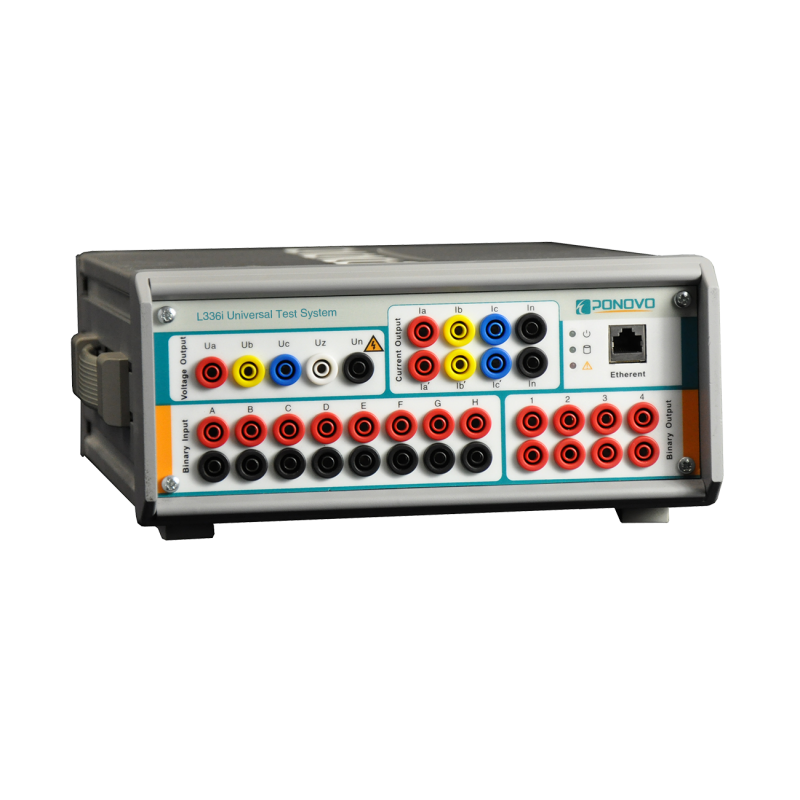

L336i is a portable protection relay test set. It is a great innovative breakthrough of PONOVO for its incomparable lightest solution (8.6 kg) with 6-currents and 4-voltages. This A4 size relay test set can test all types of modern multifunction relays. It is the first choice for relay test engineers who travel a lot.

Features:

·       6*15A, 4*300V.

·       8 binary inputs, 4 binary outputs.

·       Adjustable threshold (0-400V) for binary inputs.

·       Can be upgraded to support the test of IEC61850 complied relay.

·       Weight: 8.6 kg.

·       Dimension: 256*110*395mm.

Main Specifications
