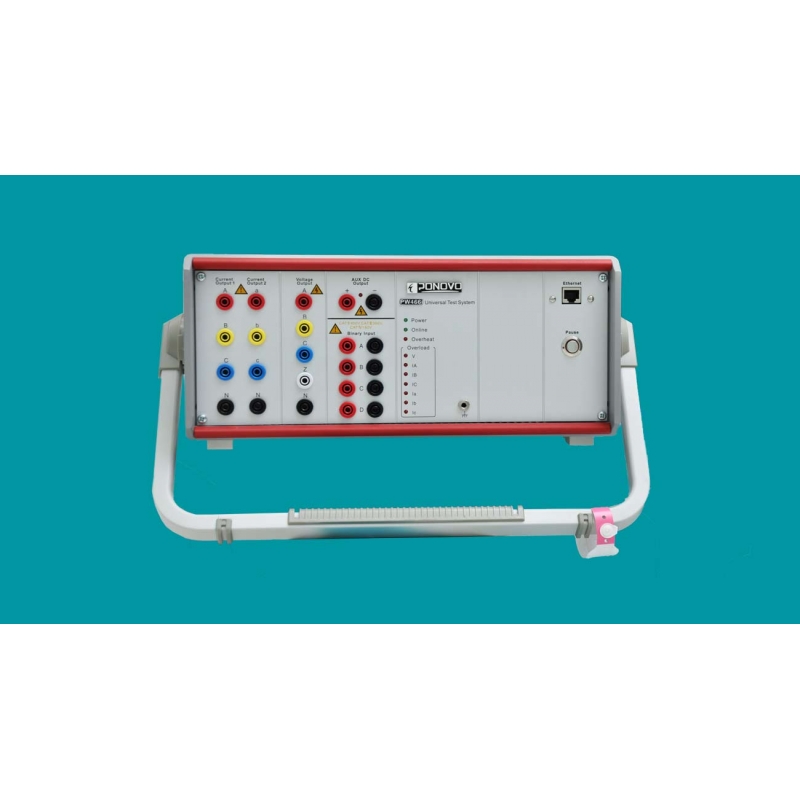

PW466i

Description

PW466i (6*20A, 6*150V) is a powerful secondary injection test set with 6-currents and 6-voltages sources. This advanced relay test equipment is capable of testing differential relay and synchronizing relay. An optional upgrade is available to support the test of IEC61850 relay.

Features:

·       6*20A, 6*150V.

·       Aux DC (0-300V).

·       8 binary inputs, 4 binary outputs.

·       Adjustable threshold (0-400V) for binary inputs.

·       In-built analog monitoring and recording function.

·       Can be upgraded to support to support the test of IEC61850 complied relay.



Main Specifications

Current



Range

6 x 0-20A

Power

6 x 180VA at 20A

3 x 320VA at 40A

Accuracy (typical)

0.04% reading + 0.01% range

Voltage



Range

6 x 0-150 VAC 1x0-300VAC

6 x 0-±150 VDC 1x0-±300 VDC

Power

6 x 30VA at 150V

3 x 60VA at 150V

Accuracy (typical)

0.04% reading + 0.01% range

Frequency



Sine signal

0.001 … 1000Hz

Transient signal

DC … 10.0kHz

Accuracy

0.3ppm

Phase angle



Range

0 -359.9o

Accuracy (typical)

0.05o

Auxiliary DC supply

0-300V

Power

88W at 110V, 176W at 200V

Binary input



Number

8

Type

0-400VDC threshold or potential free

Binary output

4

Recording & monitoring



Internal

In-built

External

Optional

IEC61850 GOOSE

Optional

Dimension

360*157*367mm

Weight

20kg
