Description

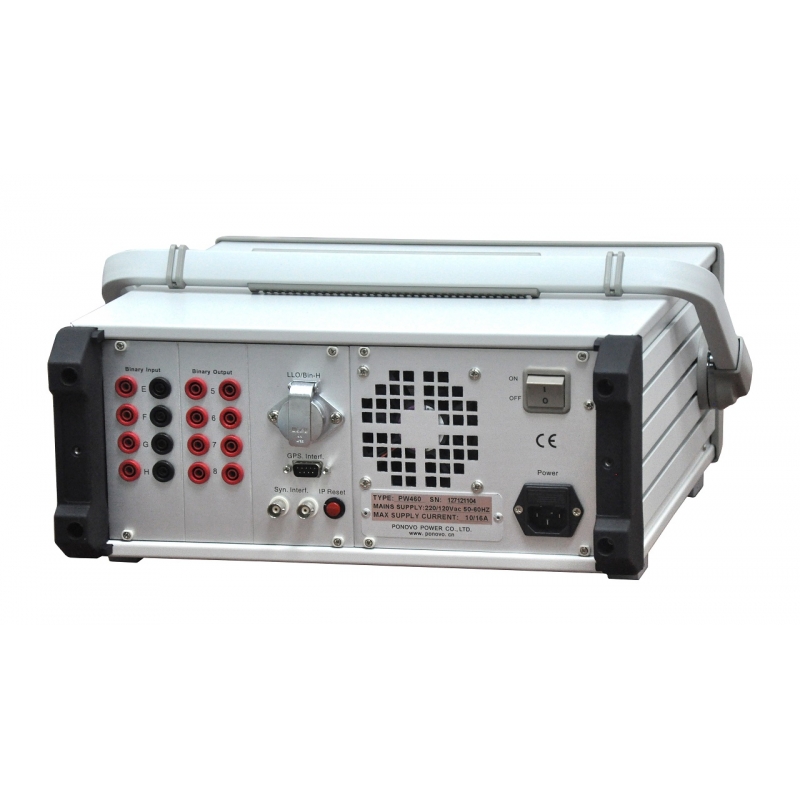

PW460 (6*15A, 4*300V) is a three phase relay test equipment that is able to do all types of protective relay tests. This relay test kit has in-built output monitoring and recording function and also supports testing kit IEC61850 IED. Optional accessories include external amplifier, GPS, circuit breaker simulation, current booster, etc.

Features:

·       6*15A, 4*300V.

·       Aux DC (0-300V), DC measuring inputs.

·       12 binary inputs, 8 binary outputs.

·       Adjustable threshold (0-400V) for binary inputs.

·       In-built analog monitoring and recording function.

·       Can be upgraded to support the test of IEC61850 complied relay.

Main Specifications

Current



Range

6 x 0-15A

Power(typical)

6 x 150VA at 15A

3 x 240VA at 30A

Accuracy (typical)

<0.08% rd + 0.02% rg.guar., at 0-15A

Voltage



Range

4 x 0-300 VAC 1x0-600VAC

4 x 0-±300 VDC 1 x 0-±600 VDC

Power (typical)

4 x 75VA at 300V

3 x 100VA at 300V

Accuracy (typical)

<0.08% rd + 0.02% rg.guar., at 0-300V

Frequency



Sine signal

0.001 … 1000Hz

Transient signal

DC … 10.0kHz

Accuracy

0.3ppm

Phase angle



Range

-360o - +360o

Accuracy (typical)

0.05o

Auxiliary DC supply

0-300V

Power

88W at 110V, 176W at 200V

Binary input



Number

8

Sample rate

0-400VDC threshold or potential free

Counter input



Number

4

Sample rate

20kHz

Binary output



Number

4

Type

Relay

Number

4

Type

Semiconductor

Low level output



Number

12

Accuracy (typical)

0.025%

DC measurement



Voltage measuring

0 … ± 10V

Current measuring

0 … ± 20mA

IEC61850 GOOSE

Optional

Dimension

360*157*367mm

Weight

20kg
