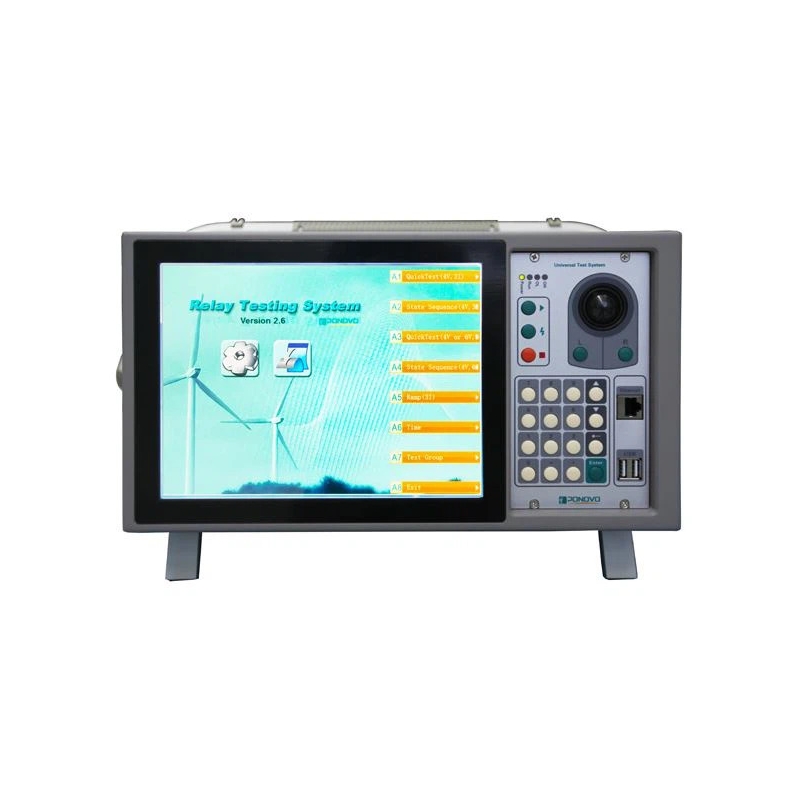

PW866i - Protection Relay Tester

Description

PW866i (6×32A, 4×300V) Protection Relay Tester could be used for testing different kinds of relay, also supports testing IEC61850 combined relays. The test function and features are similar with PW636i. The main difference between PW866i and PW636i is that PW866i has the local control system, with 10.4inch touch screen based on Windows system, a mouse and digital input keys, an Ethernet port used for connect with PC and 2 USB ports to facilitate data transmission. It can be used in power plants, substations, and relay manufactures, etc.

Product Features

- Current output 6x32A/450VA, 3x64A, 1x180A

- Voltage output 4x300V/75VA, 1x600V

- Aux DC (0-300V)

- 12 binary inputs, 8 binary outputs

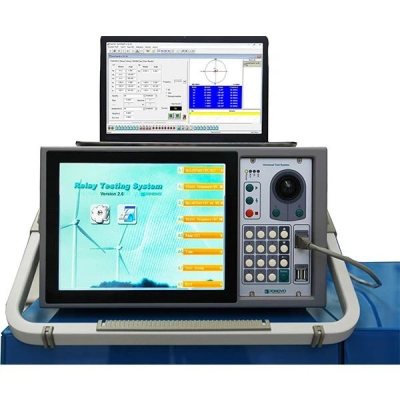

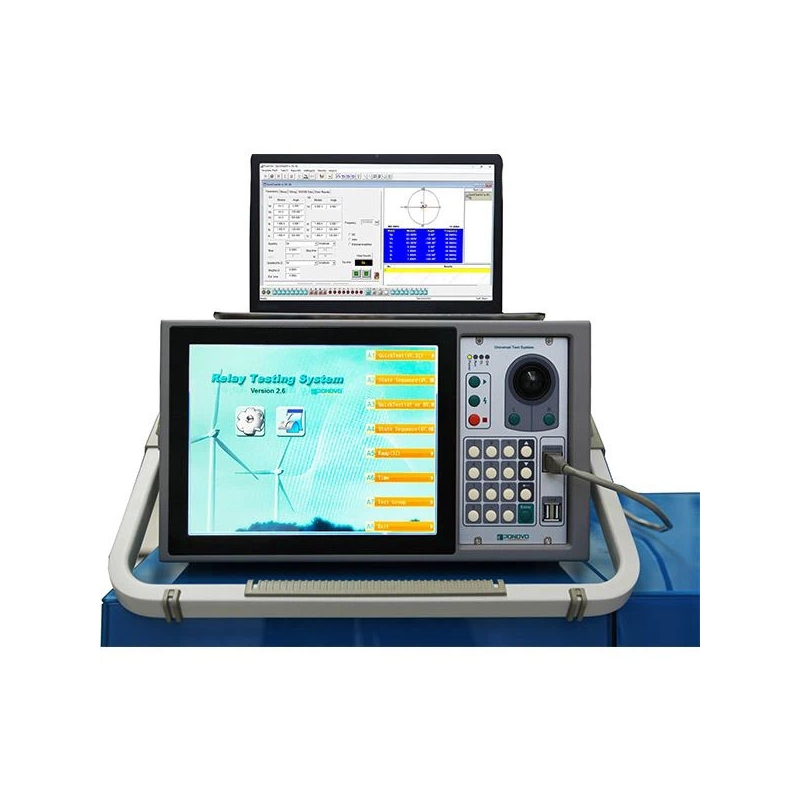

- Support both local control with 10.4inch touch screen and PC control with PowerTest software

- Support the test of IEC61850 complied relay

- In-built monitoring and recording

- More than 500 relay templates offered freely for different relay templates to do automatic testings

- Support importing setting value of relays via CSV, XRIO/RIO PONOVO's Powertest default set files automatically into relay templates

PW866i can be used for various kinds of relay testings as the followings:

IEEE. NO.	DEVICE
2	Time Delay Starting or Closing Relay
21	Distance Relay
24	Volts per Hertz Relay
25	Synchronizing or Synchronism-CheckDevice
27/27N	Undervoltage Relay
30	Annunciator Relay
32	Directional Power Relay
36	Polarity or Polarizing Voltage Devices
37	Undercurrent or Underpower Relay
40	Field (over/under excitation) Relay
46	Reverse phase or Phase-Balance Current Relay
47	Phase-sequence or phase-balance voltage relay
50/50N	Instantaneous Overcurrent
51/51N	AC Time Overcurrent Relay
52	AC Circuit Breaker
53	Field Excitation Relay
55	Power Factor Relay
56	Field Application Relay
58	Rectification failure relay
59/59N	Overvoltage Relay
60	Voltage or Current Balance Relay
61	Density switch or sensor
62	Time-Delay Stopping or Opening Relay
64	Ground Detector Relay
67/67N	AC Directional Overcurrent Relay
68	Blocking or "out of step" Relay
74	Alarm Relay
76	DC Overcurrent Relay
78	Phase-Angle Measuring Relay
79	AC-Reclosing Relay
81/81U/O/R	Frequency Relay
82	DC load-measuring reclosing relay
85	Carrier or pilot-receiver relay
86	Lock-out relay
87	Relay Testing of differential protection Relay
91	Voltage Directional Relay
92	Voltage and Power Directional Relay
94	Trip Relay

PW866i the ideal test device for all power utilities, power plants, relay manufactures, panel manufactures, research institutes, Universities, testing companies, etc.
